A new visualization created by a team of astrophysicists at NASA’s Goddard Space Flight Center illustrates how black hole’s gravity distorts our view, warping its surroundings as if seen in a carnival mirror.
“Simulations and movies like these really help us visualize what Einstein meant when he said that gravity warps the fabric of space and time,” said Dr. Jeremy Schnittman, an astrophysicist at NASA’s Goddard Space Flight Center.
“Until very recently, these visualizations were limited to our imagination and computer programs. I never thought that it would be possible to see a real black hole.”
The visualization produced by Dr. Schnittman and colleagues simulates the appearance of a black hole where infalling matter has collected into a thin accretion disk. The extreme gravity skews light emitted by different regions of the disk, producing the misshapen appearance.
Bright knots constantly form and dissipate in the disk as magnetic fields wind and twist through the churning gas.
Nearest the black hole, the gas orbits at close to the speed of light, while the outer portions spin a bit more slowly. This difference stretches and shears the bright knots, producing light and dark lanes in the disk.

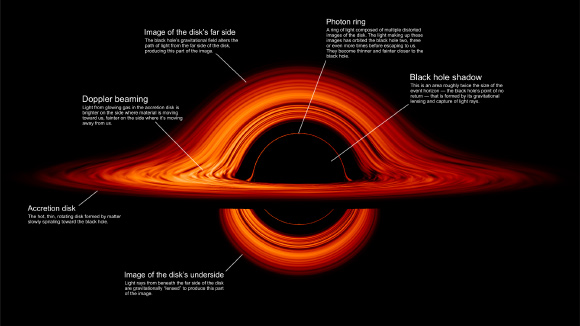

This image highlights and explains various aspects of the black hole visualization. Image credit: NASA’s Goddard Space Flight Center / Jeremy Schnittman.
Viewed from the side, the disk looks brighter on the left than it does on the right.
Glowing gas on the left side of the disk moves toward us so fast that the effects of Einstein’s relativity give it a boost in brightness; the opposite happens on the right side, where gas moving away us becomes slightly dimmer.
This asymmetry disappears when we see the disk exactly face on because, from that perspective, none of the material is moving along our line of sight.
Closest to the black hole, the gravitational light-bending becomes so excessive that we can see the underside of the disk as a bright ring of light seemingly outlining the black hole.
This so-called ‘photon ring’ is composed of multiple rings, which grow progressively fainter and thinner, from light that has circled the black hole two, three, or even more times before escaping to reach our eyes.
Because the black hole modeled in this visualization is spherical, the photon ring looks nearly circular and identical from any viewing angle.
Inside the photon ring is the black hole’s shadow, an area roughly twice the size of the event horizon — its point of no return.
_____
This article is based on text provided by the National Aeronautics and Space Administration.
